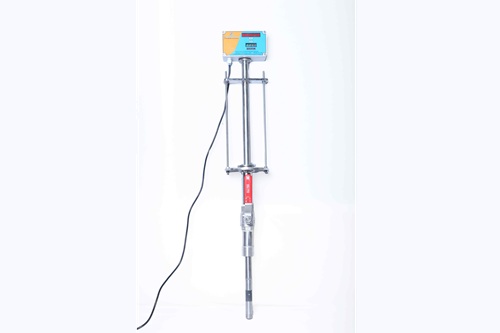

Model FT13
Technical Specifications
| Flowmeter Type | Insertion (Integral Display) Type Electromagnetic Flowmeter |
| Measuring Principle | Electromagnetic Flow Measurement |
| Media Conductivity | Minimum 5 µS/cm (Consult factory for lower conductivities) |
| Media Pressure | As Per Size |
| Media Temperature | Max. 90°C |
| Electrode Material | SS 316L / Hastelloy / Titanium / Other as per requirement |
| Accuracy | ±1% of reading |
| Display | LED |
| Repeatability | ±0.2% of reading |
| Output | 4–20 mA |
| Flow Indication | Instantaneous Flow Rate / Total Flow |
| Power Supply | 230 V AC / 110 V AC, 50 Hz / 24 V DC |
| Body MOC | S.S. 304 / S.S. 316 / S.S. 316L |
| Enclosure Material | Aluminum Die-Cast |
| Ingress Protection | IP66 / IP67 / Flameproof |
