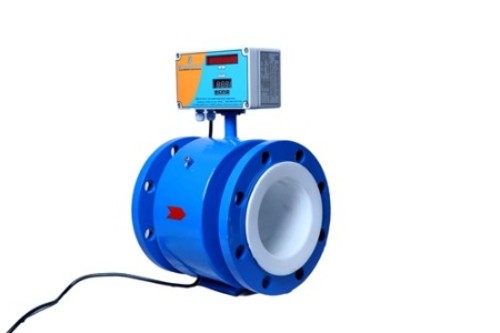

Model FT01
Technical Specifications
| Main Supply | 230V AC / 24 VDC |
| E.M.F Type | Full Bore |
| Temperature | Max 125°C for PTFE, 175°C for PFA |
| Pressure | As Per Size |
| Electrical | Minimum 5 μS/cm |
| Accuracy | ±0.5% |
| Lining | PTFE / PFA |
| Electrode | SS316L / Hastelloy ‘C’ / Titanium / Platinum |
| Flanges | ANSI #150 M.S. / C.S. |
| Body | M.S. / C.S. |
| Junction Box | Aluminum Die Cast IP66 |
| Applications | Corrosive & Non-Corrosive Conductive Liquid |
| Mounting | Integral Display |
| Output | LED Integral Display & 4-20mA O/P |
| Lining Type | Teflon Lining |
