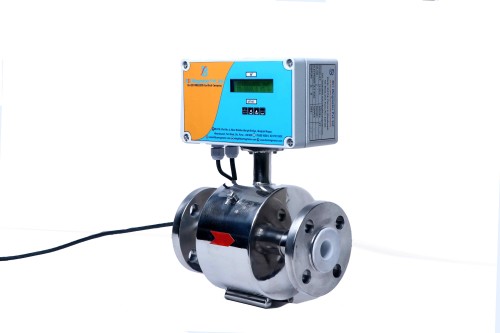

Model FT11
Technical Specifications
| Main Supply | 230V AC / 24 VDC |
| E.M.F Type | Full Bore |
| Temperature |
125°C for PTFE 175°C for PFA 80°C for Rubber |
| Pressure | As Per Size |
| Electrical | Minimum 5 μS/cm |
| Accuracy | ± 0.5% |
| Lining | PTFE / PFA / Soft Rubber / Hard Rubber / Neoprene |
| Electrode | SS316L / Hastelloy ‘C’ / Titanium / Platinum |
| Flanges | ANSI #150 S.S.304 / SS316 |
| Body | S.S.304 / SS316 |
| Junction Box | Aluminum Die Cast IP66 |
| Applications | Non-Corrosive Liquid |
| Mounting | Integral Display |
