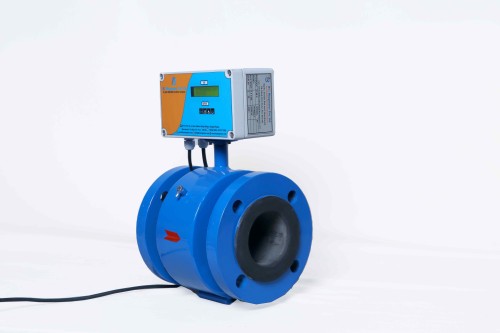

Model FT07
Technical Specifications
| Flowmeter Type | Integral Mounted Electromagnetic Flowmeter |
| Meter Size | DN 15 to DN 1000 |
| Measuring Principle | Electromagnetic Flow Measurement |
| Media Conductivity | Minimum 5 µS/cm (Consult factory for lower conductivities) |
| Media Pressure |
Below 80 mm: Max. 25 kg/cm² Above 80 mm: Max. 15 kg/cm² |
| Liner Material | Rubber Lining |
| Media Temperature | Rubber Liner: 0°C to 90°C max. |
| Electrode Material | SS 316L / Hastelloy / Titanium / Other as per requirement |
| Accuracy | ±0.5% of reading |
| Repeatability | ±0.2% of reading |
| Display | LCD |
| Output | 4–20 mA |
| Communication | RS485 / Modbus RTU |
| Flow Indication | Instantaneous Flow Rate / Total Flow |
| Power Supply | 230 V AC / 110 V AC, 50 Hz / 24 V DC |
| Empty Pipe Detection | Available on request |
| Body MOC | M.S. / C.S. |
| Flange End Connection | ANSI #150 |
| Enclosure Material | Aluminum Die-Cast |
| Ingress Protection | IP66 / IP67 / Flameproof |
